Online NOISE MONITORING SYSTEM

PRODUCT OVERVIEW:

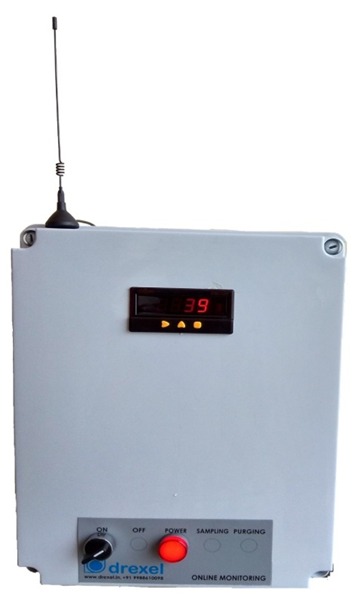

ONLINE NOISE MONITORING SYSTEM uses the specialized Noise concentration sensor probe as core detecting device, which has the characteristics of wide measurement range, high precision, good linearity, good versatility, water proof , convenient using, easy installation, long transmission distance and moderate price.

Environmental Noise Monitoring Systems
  • Name
  • POWER SUPPLY
  • OUTPUT SIGNAL
  • RESPONSE TIME
  • MEASUREMENT RANGE
  • FREQUENCY RESPONSE
  • WORKING TEMPERATURE
  • RSEOLUTION
  • WORKING HUMIDITY
  • TECHNICAL SPECIFICATIONS
  • 12-24V DC
  • RS485/4-20 mA
  • ≤2S
  • 30dB-130dB
  • 35Hz-20Khz
  • -20-60°C
  • 0.1dB
  • 15-90%
Online CO, CO2, O2 Analyzer

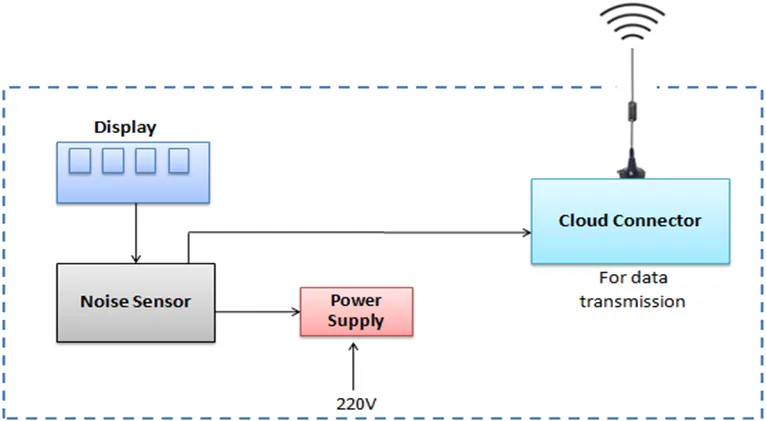

BLOCK DIAGRAM ONLINE NOISE MONITORING SYSTEM

REGISTER ADDRESS :

REGISTER ADDRESS PLC CONF. ADDRESS CONTENT OPERATION
000CH 4000D Noise (Unit 0.1dB) Ready-only
0100H 40101 Device Address (0-252) R/W
0101H 40102 Baud Rate( 2400/4800/9600) R/W

COMMUNICATION BASIC PARAMETERS:

PARAMETERS CONTENT
Code & Data bits 8-bit binary & 8-bit
Parity bit No
Stop bit 1 bit
Baud rate 2400bps/ 4800bps/ 9600bps can be set
factory defaults to 9600bps
